M106-A9G Contact Image Sensor Module

The M106-A9G compact image sensor module is a contact type image sensing module that composed of a line of LED’s as a light source, a long Selfoc rod lens array, and 320 pixels of photo-detector array. Input and output electronic contact is via a 8-pin connector. The cross sectional view of .

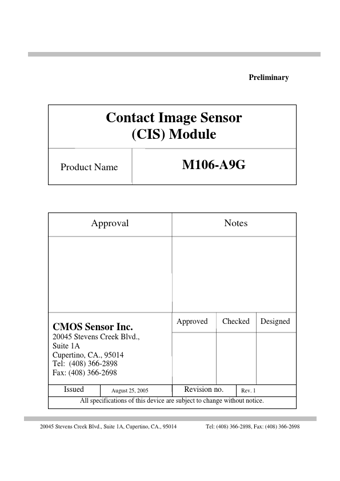

Preliminary Contact Image Sensor (CIS) Module Product Name M106-A9G Approval Notes CMOS Sensor Inc. 20045 Stevens Creek Blvd., Suite 1A Cupertino, CA., 95014 Tel: (408) 366-2898 Fax: (408) 366-2698 Approved Checked Designed Issued August 25, 2005 Revision no. Rev. 1 All specifications of this device are subject to change without notice. 20045 Stevens Creek Blvd., Suite 1A, Cupertino, CA., 95014 Tel: (408) 366-2898, Fax: (408) 366-2698 Revision control sheet Revision No Date Item o.

M106-A9G Features

* 320 x 1 image sensing elements

* 8 dots per millimeter (dpm) resolution

* 40 mm scanning length

* 12.5 mm x 15 mm x 70 mm compact size

* 0.25 ms/line scanning speed

* Green LED light source

* high MTF

* light weight

* 5V sing

M106-A9G Datasheet (87.91 KB)

M106-A9G Datasheet Preview — Preview of M106-A9G PDF

Datasheet Details

Part number:

M106-A9G

Manufacturer:

CMOS Sensor

File Size:

87.91 KB

Description:

Contact image sensor module.
