M106-A6-R1 Datasheet - CMOS Sensor

M106-A6-R1 Contact Image Sensor

The M106-A6 compact image sensor module is a contact type image sensing module that is composed of a line of LED’s as a light source, a long Selfoc rod lens array, and 832 pixels of photo-detector array. Input and output electronic contact is via a 10-pin connector. The cross sectional view of the.

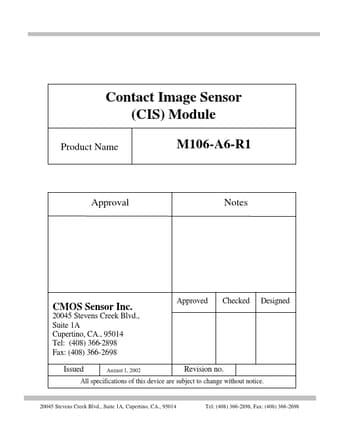

Contact Image Sensor (CIS) Module Product Name M106-A6-R1 Approval Notes CMOS Sensor Inc. 20045 Stevens Creek Blvd., Suite 1A Cupertino, CA., 95014 Tel: (408) 366-2898 Fax: (408) 366-2698 Approved Checked Designed Issued August 1, 2002 Revision no. All specifications of this device are subject to change without notice. 20045 Stevens Creek Blvd., Suite 1A, Cupertino, CA., 95014 Tel: (408) 366-2898, Fax: (408) 366-2698 Revision control sheet Revision No. Date Item of change and cont.

M106-A6-R1 Features

* 832 x 1 image sensing elements

* 8 dots per millimeter (dpm) resolution

* 104 mm scanning length

* 18 mm x 18 mm x 120 mm compact size

* 2.5 ms/line scanning speed

* Red LED light source

* high MTF

* light weight

* low power

M106-A6-R1 Datasheet (67.26 KB)

M106-A6-R1 Datasheet Preview — Preview of M106-A6-R1 PDF

Datasheet Details

Part number:

M106-A6-R1

Manufacturer:

CMOS Sensor

File Size:

67.26 KB

Description:

Contact image sensor.
