M106-A8B1 Datasheet - CMOS Sensor

M106-A8B1 Contact Image Sensor Module

The M106-A8B1 CIS module is a contact-type image sensing module that composed of a line of LED’s as a light source, a long Selfoc rod lens array, and 448 pixels of photo-detector array. Input and output electronic contact is via a 8-pin connector. The cross sectional view of the M106-A8B1 is.

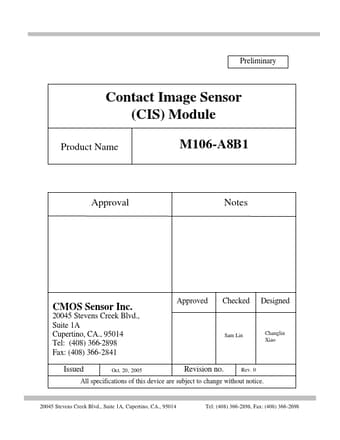

Preliminary Contact Image Sensor (CIS) Module Product Name M106-A8B1 Approval Notes CMOS Sensor Inc. 20045 Stevens Creek Blvd., Suite 1A Cupertino, CA., 95014 Tel: (408) 366-2898 Fax: (408) 366-2841 Approved Checked Designed Sam Lin Changlin Xiao Issued Oct. 20, 2005 Revision no. Rev. 0 All specifications of this device are subject to change without notice. 20045 Stevens Creek Blvd., Suite 1A, Cupertino, CA., 95014 Tel: (408) 366-2898, Fax: (408) 366-2698 Revision control sheet .

M106-A8B1 Features

* 448 x 1 image sensing elements

* 8 dots per millimeter (dpm) resolution

* 56 mm scanning length

* 12.5 mm x 15 mm x 70 mm compact size

* 0.5 ms/line scanning speed

* Blue LED light source

* high MTF

* light weight

* 5V single

M106-A8B1 Datasheet (64.91 KB)

M106-A8B1 Datasheet Preview — Preview of M106-A8B1 PDF

Datasheet Details

Part number:

M106-A8B1

Manufacturer:

CMOS Sensor

File Size:

64.91 KB

Description:

Contact image sensor module.
