M106-A8R1 Datasheet - CMOS Sensor

M106-A8R1 Contact Image Sensor Module

The M106-A8 compact image sensor module is a contact type image sensing module that is composed of a line of LED’s as a light source, a long Selfoc rod lens array, and 448 pixels of photo-detector array. Input and output electronic contact is via a 8-pin connector. The cross sectional view of the .

Preliminary Contact Image Sensor (CIS) Module Product Name M106-A8R1 Approval Notes CMOS Sensor Inc. 20045 Stevens Creek Blvd., Suite 1A Cupertino, CA., 95014 Tel: (408) 366-2898 Fax: (408) 366-2698 Approved Checked Designed Issued Nov 11, 2002 Revision no. All specifications of this device are subject to change without notice. 20045 Stevens Creek Blvd., Suite 1A, Cupertino, CA., 95014 Tel: (408) 366-2898, Fax: (408) 366-2698 Revision control sheet Revision No. Date Item of chang.

M106-A8R1 Features

* 448 x 1 image sensing elements

* 8 dots per millimeter (dpm) resolution

* 56 mm scanning length

* 12.5 mm x 15 mm x 70 mm compact size

* 1 ms/line scanning speed

* Red LED light source

* high MTF

* light weight

* 5V single po

M106-A8R1 Datasheet (64.55 KB)

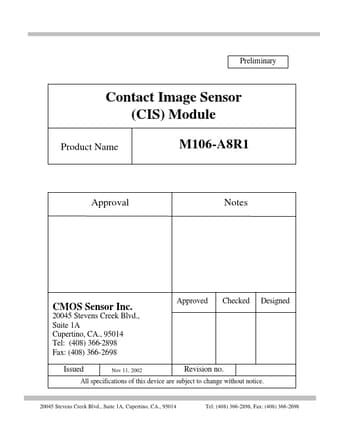

M106-A8R1 Datasheet Preview — Preview of M106-A8R1 PDF

Datasheet Details

Part number:

M106-A8R1

Manufacturer:

CMOS Sensor

File Size:

64.55 KB

Description:

Contact image sensor module.
