KTLP160G - 4PIN MINI-FLAT RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Product Overview

COSMO Electronics Corporation

Datasheet Details

Part number	KTLP160G
Manufacturer	COSMO Electronics Corporation
File Size	199.45 KB
Description	4PIN MINI-FLAT RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Datasheet	KTLP160G Datasheet
Additional preview pages of the KTLP160G datasheet.

Product details

Description

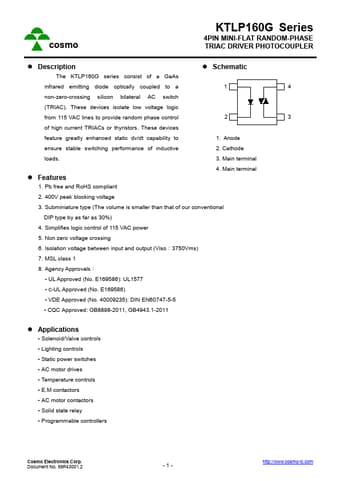

The KTLP160G series consist of a GaAs Schematic infrared emitting diode optically coupled to a 1 non-zero-crossing silicon bilateral AC switch (TRIAC).These devices isolate low voltage logic from 115 VAC lines to provide random phase control 2 of high current TRIACs or thyristors.These devices feature greatly enhanced static dv/dt capability to 1. Anode ensure stable switching performance of inductive 2. Cathode loads.3. Main terminal

Features

s 1. Pb free and RoHS compliant 4. Main terminal 2. 400V peak blocking voltage 3. Subminiature type (The volume is smaller than that of our conventional DIP type by as far as 30%) 4. Simplifies logic control of 115 VAC power 5. Non zero voltage crossing 6. Isolation voltage between input and output (Viso：3750Vms) 7. MSL class 1 8. Agency Approvals：.
UL Approved (No. E169586): UL1577.
C-UL Approved (No. E169586).
VDE Approved (No. 40009235): DIN EN60747-5-5.
