KTLP161G - 4PIN MINI-FLAT ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER

Product Overview

COSMO Electronics Corporation

Datasheet Details

Part number	KTLP161G
Manufacturer	COSMO Electronics Corporation
File Size	227.77 KB
Description	4PIN MINI-FLAT ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
Datasheet	KTLP161G Datasheet

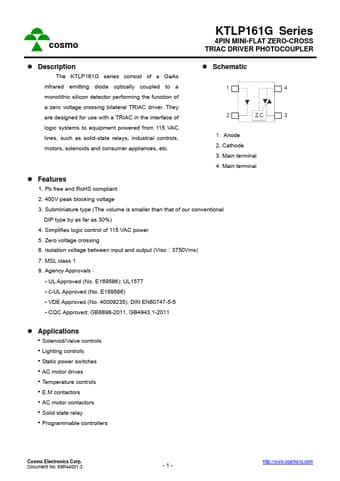

Additional preview pages of the KTLP161G datasheet.

Product details

Description

The KTLP161G series consist of a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral TRIAC driver. Schematic 1 2 Z.C 1. Anode 2. Cathode 3. Main terminal 4. Main terminal

Features

s 1. Pb free and RoHS compliant 2. 400V peak blocking voltage 3. Subminiature type (The volume is smaller than that of our conventional DIP type by as far as 30%) 4. Simplifies logic control of 115 VAC power 5. Zero voltage crossing 6. Isolation voltage between input and output (Viso：3750Vms) 7. MSL class 1 8. Agency Approvals：.
UL Approved (No. E169586): UL1577.
C-UL Approved (No. E169586).
VDE Approved.
