KTLP160J - 4PIN MINI-FLAT RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Product Overview

COSMO Electronics Corporation

Datasheet Details

Part number	KTLP160J
Manufacturer	COSMO Electronics Corporation
File Size	222.00 KB
Description	4PIN MINI-FLAT RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Datasheet	KTLP160J Datasheet

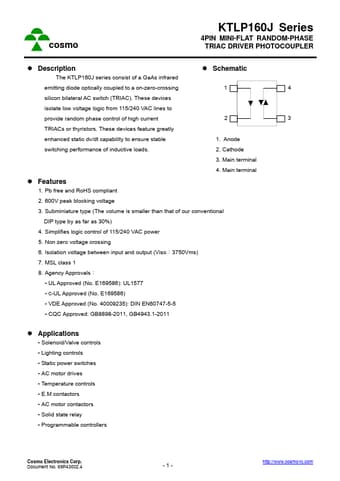

Additional preview pages of the KTLP160J datasheet.

Product details

Description

The KTLP160J series consist of a GaAs infrared Schematic emitting diode optically coupled to a on-zero-crossing 1 silicon bilateral AC switch (TRIAC).These devices isolate low voltage logic from 115/240 VAC lines to provide random phase control of high current 2 TRIACs or thyristors.These devices feature greatly enhanced static dv/dt capability to ensure stable 1. Anode switching performance of inductive loads.2. Cathode 3. Main terminal 4. Main terminal

Features

s 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. Subminiature type (The volume is smaller than that of our conventional DIP type by as far as 30%) 4. Simplifies logic control of 115/240 VAC power 5. Non zero voltage crossing 6. Isolation voltage between input and output (Viso：3750Vms) 7. MSL class 1 8. Agency Approvals：.
UL Approved (No. E169586): UL1577.
C-UL Approved (No. E169.
