KTLP250L - 8PIN IGBT GATE DRIVE PHOTOCOUPLER

Product Overview

Cosmo

Part number	KTLP250L
Manufacturer	Cosmo
File Size	322.17 KB
Description	8PIN IGBT GATE DRIVE PHOTOCOUPLER
Datasheet	KTLP250L Datasheet
Note	This datasheet PDF includes multiple part numbers: KTLP250L, KTLP250. Please refer to the document for exact specifications by model.

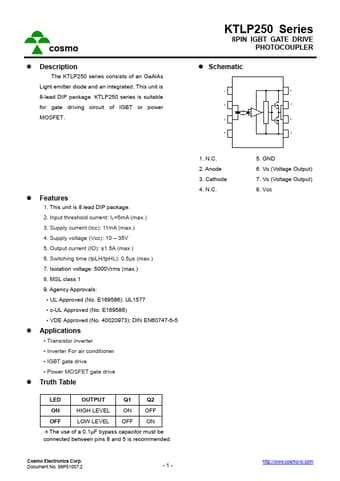

Additional preview pages of the KTLP250L datasheet.

The KTLP250 series consists of an GaAlAs Light emitter diode and an integrated. Schematic 18 27 36 45

s 1. This unit is 8.lead DIP package. 2. Input threshold current: IF=5mA (max. ) 3. Supply current (Icc): 11mA (max. ) 4. Supply voltage (Vcc): 10.
35V 5. Output current (IO): ±1.5A (max. ) 6. Switching time (tpLH/tpHL): 0.5µs (max. ) 7. Isolation voltage: 5000Vrms (max. ) 8. MSL class 1 9. Agency Approvals:.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586).
VDE Approved (No. 40020973): DIN EN60747-5-5.
