KTLP260J - 4PIN MINI-FLAT RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Product Overview

COSMO Electronics Corporation

Datasheet Details

Part number	KTLP260J
Manufacturer	COSMO Electronics Corporation
File Size	200.13 KB
Description	4PIN MINI-FLAT RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
Datasheet	KTLP260J Datasheet
Additional preview pages of the KTLP260J datasheet.

Product details

Description

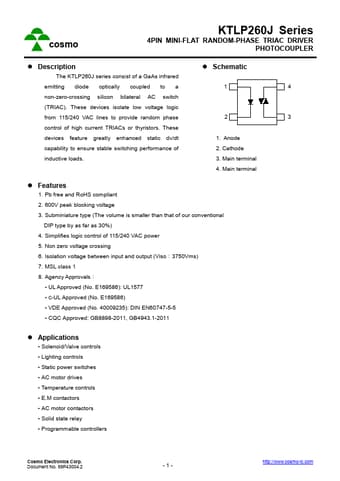

The KTLP260J series consist of a GaAs infrared emitting diode optically coupled to a non-zero-crossing silicon bilateral AC switch (TRIAC). Schematic 1 2 1. Anode 2. Cathode 3. Main terminal 4. Main terminal

Features

s 1. Pb free and RoHS compliant 2. 600V peak blocking voltage 3. Subminiature type (The volume is smaller than that of our conventional DIP type by as far as 30%) 4. Simplifies logic control of 115/240 VAC power 5. Non zero voltage crossing 6. Isolation voltage between input and output (Viso：3750Vms) 7. MSL class 1 8. Agency Approvals：.
UL Approved (No. E169586): UL1577.
C-UL Approved (No. E169586).
VDE Approv.
