CS130N03A4 Datasheet, Mosfet, CR Micro

CS130N03A4 Features

  • Mosfet
  • Fast Switching
  • Low ON Resistance(Rdson≤2.5mΩ)
  • Low Gate Charge
  • Low Reverse transfer capacitances(Typical:482pF)
  • 100% Single Pulse aval

PDF File Details

Part number:

CS130N03A4

Manufacturer:

CR Micro

File Size:

637.95kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. VDSS 30 V CS130N03 A4, the silicon N-channel Enhanced ID(Silicon limited current) 130 A VDMOSFETs, is obtained by advanced T

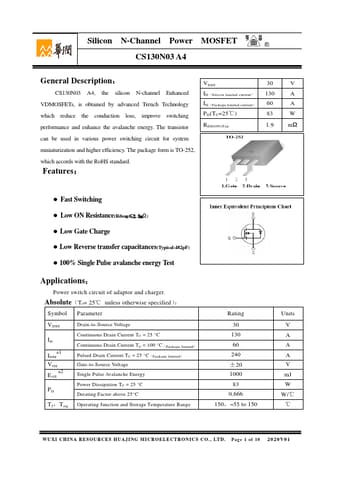

Datasheet Preview: CS130N03A4 📥 Download PDF (637.95kb)
Page 2 of CS130N03A4 Page 3 of CS130N03A4

CS130N03A4 Application

  • Applications Power switch circuit of adaptor and charger. Absolute(TJ= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 VGS EAS a2
