CS13N03AE Datasheet, Mosfet, CR Micro

CS13N03AE Features

  • Mosfet VDSS ID RDS(ON)Typ 30 V 13 A 8.3 mΩ l Fast Switching l Low ON Resistance(Rdson≤10mΩ) l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy T

PDF File Details

Part number:

CS13N03AE

Manufacturer:

CR Micro

File Size:

397.86kb

Download:

📄 Datasheet

Description:

Silicon n-channel power mosfet. CS13N03 AE, the silicon N-channel Enhanced VDMOSFETs, is obtained by advanced Trench Technology which reduce the conduction loss, im

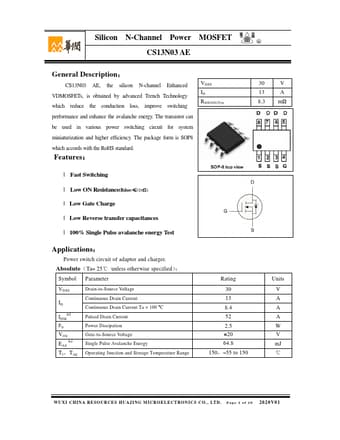

Datasheet Preview: CS13N03AE 📥 Download PDF (397.86kb)
Page 2 of CS13N03AE Page 3 of CS13N03AE

CS13N03AE Application

  • Applications Power switch circuit of adaptor and charger. Absolute(Ta= 25℃ unless otherwise specified): Symbol Parameter VDSS ID IDMa1 PD VGS EA
