CS13N10AQ3-G Datasheet - CR Micro

Silicon N-Channel Power MOSFET

CS13N10AQ3-G Features

* Fast Switching

* Low ON Resistance(Rdson≤68 mΩ)

* Low Gate Charge

* Low Reverse transfer capacitances

* 100% Single Pulse avalanche energy Test

* Halogen Free Applications： Power switch circuit of adaptor and charger. VDSS ID PD RDS(ON)Typ 100 V 13 A 25 W 54 mΩ Absolute

CS13N10AQ3-G General Description

CS13N10 AQ3-G, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy. This device is suitable for use as a load switch and PWM applications. The package form is PDF.

CS13N10AQ3-G Datasheet (881.25 KB)

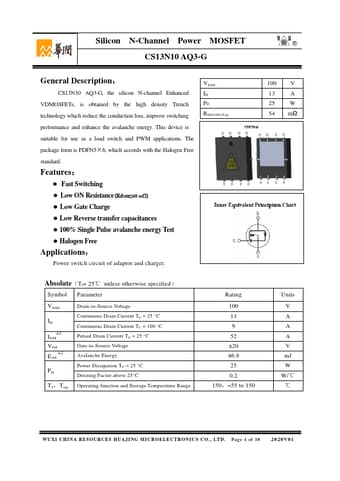

Preview of CS13N10AQ3-G PDF

Datasheet Details

Part number:

CS13N10AQ3-G

Manufacturer:

CR Micro

File Size:

881.25 KB

Description:

Silicon n-channel power mosfet.
