CS45N25FA9R-G - Silicon N-Channel Power MOSFET

CR Micro

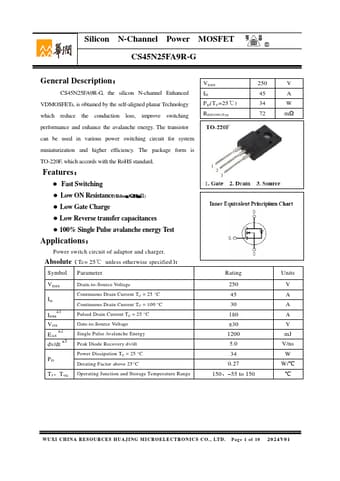

CS45N25FA9R-G Datasheet Preview — Preview of CS45N25FA9R-G PDF

Datasheet Details

Part number	CS45N25FA9R-G
Manufacturer	CR Micro
File Size	708.08 KB
Description	Silicon N-Channel Power MOSFET
Datasheet	CS45N25FA9R-G-CRMicro.pdf

CS45N25FA9R-G Product details

Description

CS45N25FA9R-G, the silicon N-channel Enhanced VDMOSFETs, is obtained by the self-aligned planar Technology which reduce the conduction loss, improve switching performance and enhance the avalanche energy.The transistor can be used in various power switching circuit for system miniaturization and higher efficiency.The package form is TO-220F, which accords with the RoHS standard.

Features

Fast Switching.
Low ON Resistance(Rdson≤85mΩ).
Low Gate Charge.
Low Reverse transfer capacitances.
100% Single Pulse avalanche energy Test.
