CS55N10A4 Datasheet - CR Micro

CS55N10A4 Silicon N-Channel Power MOSFET

CS55N10 A4, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction loss, improve switching VDSS ID PD RDS(ON)Typ performance and enhance the avalanche energy. This device is suitable for use as a load switch and PWM applications. T.

CS55N10A4 Features

* l Fast Switching l Low ON Resistance(Rdson≤15 mΩ) l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test Applications： Power switch circuit of adaptor and charger. 100 V 55 A 96 W 12 mΩ Absolute（Tj= 25℃ unless otherwise specified） Symbol Parameter VDSS

CS55N10A4-CRMicro.pdf

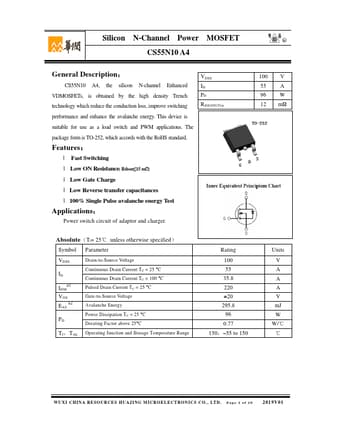

Preview of CS55N10A4 PDF
CS55N10A4 Datasheet Preview Page 2 CS55N10A4 Datasheet Preview Page 3

Datasheet Details

Part number:

CS55N10A4

Manufacturer:

CR Micro

File Size:

507.57 KB

Description:

Silicon n-channel power mosfet.
