CS55N10AQ3-G

Silicon N-Channel Power MOSFET

CS55N10AQ3-G Features

* l Fast Switching l Low ON Resistance(Rdson≤15 mΩ) l Low Gate Charge l Low Reverse transfer capacitances l 100% Single Pulse avalanche energy Test l Halogen Free Applications: Power switch circuit of adaptor and charger. 100 V 55 A 96 W 12 mΩ Absolute(Tj= 25℃ unless otherwise specified) Symbol

CS55N10AQ3-G General Description

CS55N10 AQ3-G, the silicon N-channel Enhanced VDMOSFETs, is obtained by the high density Trench technology which reduce the conduction loss, improve switching VDSS ID PD RDS(ON)Typ performance and enhance the avalanche energy. This device is suitable for use as a load switch and PWM applications.

CS55N10AQ3-G Datasheet (517.42 KB)

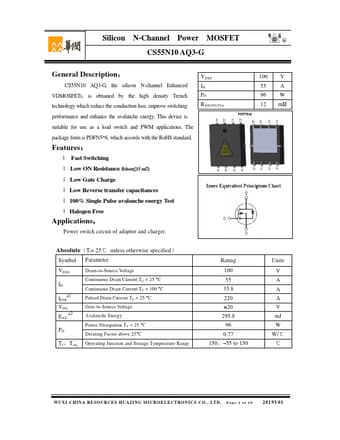

Preview of CS55N10AQ3-G PDF

Datasheet Details

Part number:

CS55N10AQ3-G

Manufacturer:

CR Micro

File Size:

517.42 KB

Description:

Silicon n-channel power mosfet.
