CLC1001

Ultra-Low Noise Amplifier

CLC1001 Features

* n 0.6 nV/√Hz input voltage noise n 1mV maximum input offset voltage n 2.1GHz gain bandwidth product n Minimum stable gain of 10 n 410V/μs slew rate n 130mA output current n -40°C to +125°C operating temperature range n Fully specified at 5V and ±5V supplies n CLC1001: Lead-free SOT23-6, SOI

CLC1001 General Description

The COMLINEAR CLC1001(single) is a high-performance, voltage feedback amplifier with ultra-low input voltage noise, 0.6nV/√Hz. The CLC1001 provides 2.1GHz gain bandwidth product and 410V/μs slew rate making it well suited for high-speed data acquisition systems requiring high levels of sensitivity a.

CLC1001 Datasheet (2.03 MB)

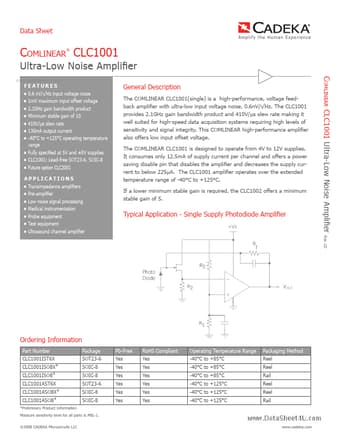

Preview of CLC1001 PDF

Datasheet Details

Part number:

CLC1001

Manufacturer:

Cadeka

File Size:

2.03 MB

Description:

Ultra-low noise amplifier.
Data Sheet A m p l i fy t h e H u m a n E x p e r i e n c e ® Comlinear CLC1001 www.datasheet4u.com Ultra-Low Noise Amplifier Comlinear CLC100.
