CLC1002

Ultra-Low Noise Amplifier

CLC1002 Features

* n 0.6 nV/√Hz input voltage noise n 1mV maximum input offset voltage n 965MHz gain bandwidth product n Minimum stable gain of 5 n 170V/μs slew rate n 130mA output current n -40°C to +125°C operating temperature range n Fully specified at 5V and ±5V supplies n CLC1002: Lead-free SOT23-6 n Fu

CLC1002 General Description

The COMLINEAR CLC1002(single) is a high-performance, voltage feedback amplifier with ultra-low input voltage noise, 0.6nV/√Hz. The CLC1002 provides 965MHz gain bandwidth product and 170V/μs slew rate making it well suited for high-speed data acquisition systems requiring high levels of sensitivity a.

CLC1002 Datasheet (2.00 MB)

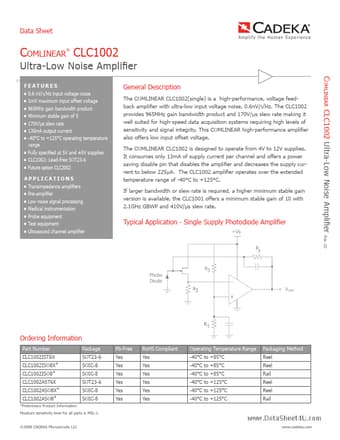

Preview of CLC1002 PDF

Datasheet Details

Part number:

CLC1002

Manufacturer:

Cadeka

File Size:

2.00 MB

Description:

Ultra-low noise amplifier.
Data Sheet A m p l i fy t h e H u m a n E x p e r i e n c e ® Comlinear CLC1002 www.datasheet4u.com Ultra-Low Noise Amplifier Comlinear CLC100.
