CLC1009

35MHz Rail-to-Rail Amplifiers

CLC1009 Features

* n 208μA supply current n 35MHz bandwidth n Input voltage range with 5V supply: -0.3V to 3.8V n Output voltage range with 5V supply: 0.08V to 4.88V n 27V/μs slew rate n 21nV/√Hz input voltage noise n 13mA linear output current n Fully specified at 2.7V and 5V supplies n Replaces MAX4281 APPL

CLC1009 General Description

The COMLINEAR CLC1009 (single) and CLC2009 (dual) are ultra-low power, low cost, voltage feedback amplifiers. These amplifiers use only 208μA of supply current and are designed to operate from a supply range of 2.5V to 5.5V (±1.25 to ±2.7.

CLC1009 Datasheet (603.58 KB)

Preview of CLC1009 PDF

Datasheet Details

Part number:

CLC1009

Manufacturer:

Exar

File Size:

603.58 KB

Description:

35mhz rail-to-rail amplifiers.

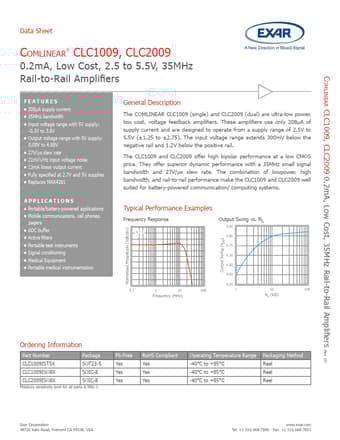

Comlinear CLC1009, CLC2009 0.2mA, Low Cost, 35MHz Rail-to-Rail Amplifiers Rev 1D Data Sheet Comlinear® CLC1009, CLC2009 0.2mA, Low Cost, 2.5 to 5.5V,.
