CLC1008

75MHz Rail-to-Rail Amplifiers

CLC1008 Features

* n 505μA supply current n 75MHz bandwidth n Input voltage range with 5V supply: -0.3V to 3.8V n Output voltage range with 5V supply: 0.07V to 4.86V n 50V/μs slew rate n 12nV/√Hz input voltage noise n 15mA linear output current n Fully specified at 2.7V and 5V supplies n Replaces AD8031 in VS

CLC1008 General Description

The COMLINEAR CLC1008 (single) and CLC2008 (dual) offer superior dynamic performance with 75MHz small signal bandwidth and 50V/μs slew rate. These amplifiers use only 505μA of supply current and are designed to operate from a supply range of 2.5V to 5.5V (±1.25 to ±2.75).The combination of low power.

CLC1008 Datasheet (677.82 KB)

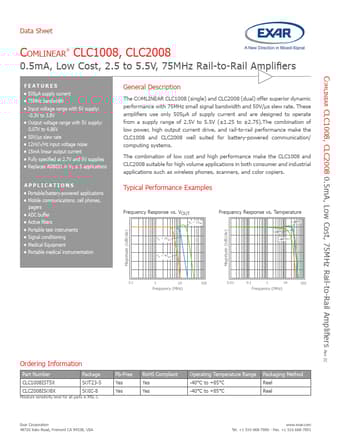

Preview of CLC1008 PDF

Datasheet Details

Part number:

CLC1008

Manufacturer:

Exar

File Size:

677.82 KB

Description:

75mhz rail-to-rail amplifiers.
Comlinear CLC1008, CLC2008 0.5mA, Low Cost, 75MHz Rail-to-Rail Amplifiers Rev 2C Data Sheet Comlinear® CLC1008, CLC2008 0.5mA, Low Cost, 2.5 to 5.5V.
