CLC3600 Datasheet, Amplifiers, Cadeka

CLC3600 Features

  • Amplifiers n 0.1dB gain flatness to 95MHz n 0.03%/0.04˚ differential gain/ phase error n 230MHz -3dB bandwidth at G = 2 n 300MHz -3dB bandwidth at G = 1 n 1,300V/μs slew rate n 50mA output

PDF File Details

Part number:

CLC3600

Manufacturer:

Cadeka

File Size:

2.23MB

Download:

📄 Datasheet

Description:

(clcx600) 300mhz amplifiers. The Comlinear CLC2600 (dual), CLC3600 (triple), and CLC4600 (quad) are high-performance, current feedback amplifiers. These amplifier

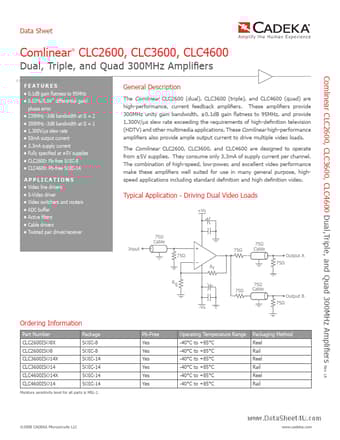

Datasheet Preview: CLC3600 📥 Download PDF (2.23MB)
Page 2 of CLC3600 Page 3 of CLC3600

CLC3600 Application

  • Applications n Video line drivers n S-Video driver n Video switchers and routers n ADC buffer n Active filters n Cable drivers n Twisted pair
