CLC3605 Datasheet, Amplifiers, Cadeka

CLC3605 Features

  • Amplifiers n 0.1dB gain flatness to 120MHz n 0.01%/0.01˚ differential gain/phase n 1.2GHz -3dB bandwidth at G = 2 n 700MHz large signal bandwidth n 2,500V/μs slew rate n 3.7nV/√Hz input volt

PDF File Details

Part number:

CLC3605

Manufacturer:

Cadeka

File Size:

2.78MB

Download:

📄 Datasheet

Description:

(clc1605 / clc3605) 1.5ghz amplifiers. The COMLINEAR CLC1605 (single) and CLC3605 (triple) are high-performance, current feedback amplifiers that provide 1.5GHz unity gain

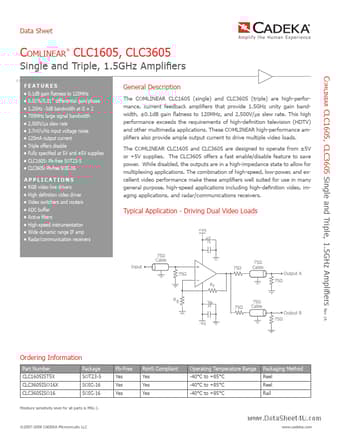

Datasheet Preview: CLC3605 📥 Download PDF (2.78MB)
Page 2 of CLC3605 Page 3 of CLC3605

CLC3605 Application

  • Applications n RGB video line drivers n High definition video driver n Video switchers and routers n ADC buffer n Active filters n High-speed
