CLC006

Serial Digital Cable Driver with Adjustable Outputs

CLC006 Features

* n n n n n n No external pull-down resistors Adjustable output amplitude Differential input and output Low power dissipation Single +5V or

* 5.2V supply Replaces GS9008 in most applications DS100084-3 Order Number CLC006AJE See NS Package Number M08A Typical Application DS100084-2 © 1998

CLC006 General Description

National’s Comlinear CLC006 is a monolithic, high-speed cable driver designed for the SMPTE 259M serial digital video data transmission standard. The CLC006 drives 75Ω transmission lines (Belden 8281 or equivalent) at data rates up to 400 Mbps. Controlled output rise and fall times (650 ps typical) .

CLC006 Datasheet (189.96 KB)

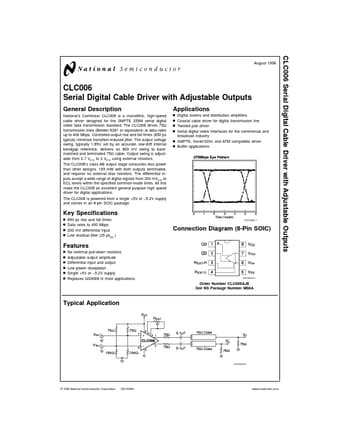

Preview of CLC006 PDF

Datasheet Details

Part number:

CLC006

Manufacturer:

National Semiconductor

File Size:

189.96 KB

Description:

Serial digital cable driver with adjustable outputs.
CLC006 Serial Digital Cable Driver with Adjustable Outputs August 1998 CLC006 Serial Digital Cable Driver with Adjustable Outputs General Descriptio.
