CM6900G - Resonant Controller

Champion Microelectronic

CM6900G Description

CM6900G Resonant Controller GENERAL .
FEATURES CM6900G is resonant controller tailor for series z topology with synchronous operation to achieve z high efficiency to meet today’s power.

CM6900G Applications

* z DC-DC Power Supply. z LED Lighting Power Supply z Server Power z Industrial Power Supply z High Power Adaptor CM6900G Pin Configuration ORDERING INFORMATION Part Number CM6900GIS
* Note: G : Suffix for Pb Free Product Temperature Range -40℃ to 125℃ Package 16-Pin SOIC (S016) 2007/11/22 Re

📥 Download Datasheet

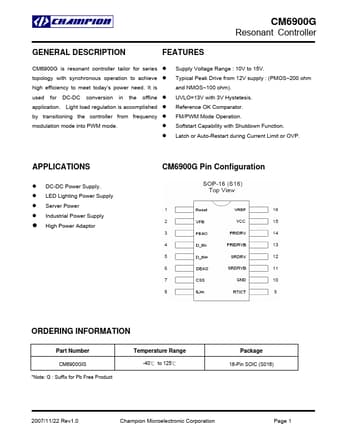

CM6900G Datasheet Preview — Preview of CM6900G PDF

Datasheet Details

Part number: CM6900G
Manufacturer: Champion Microelectronic
File Size: 217.63 KB
Datasheet: CM6900G-ChampionMicroelectronic.pdf
Description: Resonant Controller
