CM1582

3A LOW DROPOUT VOLTAGE REGULATOR

Champion

CM1582 Features

* are ideal for low voltage microprocessor applications requiring a regulated 1.8V to 3.6V power supply. In addition, the CM1582 provides the device protections including over current and thermal shutdown. The CM1582 series are ideal to the next generation microprocessor on motherboards where both 5V

CM1582 General Description

The CM1582 is a high performance low dropout regulator rated for 3A output current with fixed 1.8V/2.5V/3.3V/5.0V and adjustable output. It is designed for use in applications requiring low dropout characteristics over the rated current range. When the second low-current input voltage is applied, th.

CM1582 Datasheet (280.63 KB)

Rating: 1 ★ (5 votes)

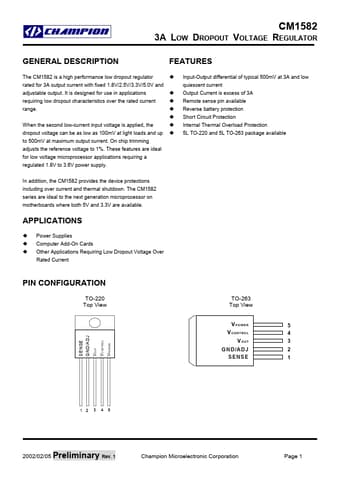

CM1582 Datasheet Preview — Preview of CM1582 PDF

Datasheet Details

Part number:

CM1582

Manufacturer:

Champion

File Size:

280.63 KB

Description:

3a low dropout voltage regulator.
