RY3430

1.2MHz 3A Synchronous Step-Down Regulator

RY3430 Features

* High Efficiency: Up to 96%

* 2.5V to 5.5V Input Voltage Range

* 1.2MHz Constant Frequency Operation

* Up to 3.0A Current Output

* No Schottky Diode Required

* PFM Mode for High Efficiency in Light Load

* Over temperature Protected

RY3430 General Description

k The RY3430 is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version. Supply current with no load is 40uA and drops to e <1uA in shutdown. The 2.5V to 5.5V input voltage range makes the RY34.

RY3430 Datasheet (1.86 MB)

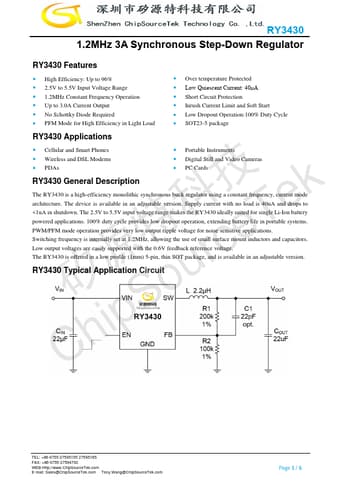

Preview of RY3430 PDF

Datasheet Details

Part number:

RY3430

Manufacturer:

ChipSourceTek

File Size:

1.86 MB

Description:

1.2mhz 3a synchronous step-down regulator.
