RY3740 - 1.2MHz Boost Regulator

RYCHIP

📥 Download Datasheet

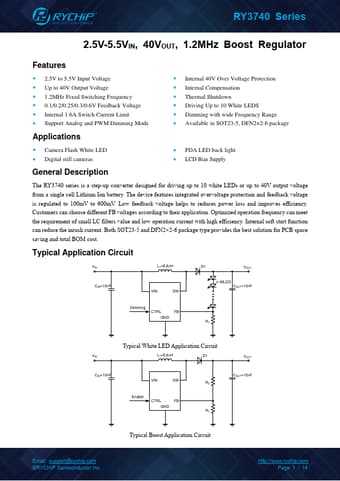

RY3740 Datasheet Preview — Preview of RY3740 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	RY3740
Manufacturer	RYCHIP
File Size	1.24 MB
Description	1.2MHz Boost Regulator
Datasheet	RY3740-RYCHIP.pdf

RY3740 Product details

Description

The RY3740 series is a step-up converter designed for driving up to 10 white LEDs or up to 40V output voltage from a single cell Lithium Ion battery.

Features

2.5V to 5.5V Input Voltage.
Up to 40V Output Voltage.
1.2MHz Fixed Switching Frequency.
0.1/0.2/0.25/0.3/0.6V Feedback Voltage.
Internal 1.6A Switch Current Limit.
Support Analog and PWM Dimming Mode.
Internal 40V Over Voltage Protection.
Internal Compensation.
Thermal Shutdown.
Driving Up to 10 White LEDS.
Dimming with wide Frequency Range.
Available in SOT23-5, DFN2×2-6 package Appli.
