RY3420

1.2MHz 2A Synchronous Step-Down Regulator

RY3420 Features

* High Efficiency: Up to 96%

* 2.5V to 5.5V Input Voltage Range

* 1.2MHz Constant Frequency Operation

* No Schottky Diode Required

* Low Dropout Operation: 100% Duty Cycle

* PFM Mode for High Efficiency in Light Load

* Over Temperature Protec

RY3420 General Description

k The RY3420 is a high-efficiency monolithic synchronous buck regulator using a constant frequency, current mode architecture. The device is available in an adjustable version. Supply current with no load is 40uA and drops to e <1uA in shutdown. The 2.3V to 6V input voltage range makes the RY3420.

RY3420 Datasheet (1.90 MB)

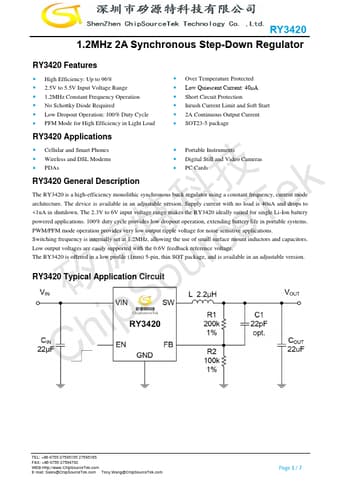

Preview of RY3420 PDF

Datasheet Details

Part number:

RY3420

Manufacturer:

ChipSourceTek

File Size:

1.90 MB

Description:

1.2mhz 2a synchronous step-down regulator.
