RY3831

18V 2.5A 500KHz Synchronous Step-Down Regulator

RYCHIP

RY3831 Features

* Wide 4.5V to 18V Operating Input Range

* 2.5A Continuous Output Current

* 500KHz Switching Frequency

* Short Protection with Hiccup-Mode

* Built-in Over Current Limit

* Built-in Over Voltage Protection

* PFM Mode for High Efficiency in Light

RY3831 General Description

The RY3831 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 2.5A continuous current over a wide input supply range, with excellent load and line regulation. The RY3831 requires a minimal number .

RY3831 Datasheet (0.97 MB)

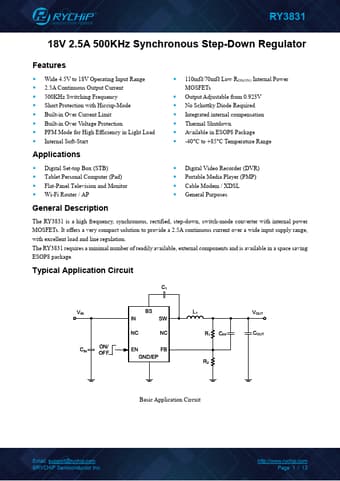

RY3831 Datasheet Preview — Preview of RY3831 PDF

Datasheet Details

Part number:

RY3831

Manufacturer:

RYCHIP

File Size:

0.97 MB

Description:

18v 2.5a 500khz synchronous step-down regulator.
