RY3834C

18V 3A 500KHz Synchronous Step-Down Regulator

RY3834C Features

* Wide 4.5V to 18V Operating Input Range

* 3A Continuous Output Current

* 500KHz Switching Frequency

* Short Protection with Hiccup-Mode

* Built-in Over Current Limit

* Built-in Over Voltage Protection

* Force-PWM Mode

* Internal Soft-

RY3834C General Description

The RY3834C is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to provide a 3A continuous current over a wide input supply range, with excellent load and line regulation. The RY3834C requires a minimal number .

RY3834C Datasheet (1.36 MB)

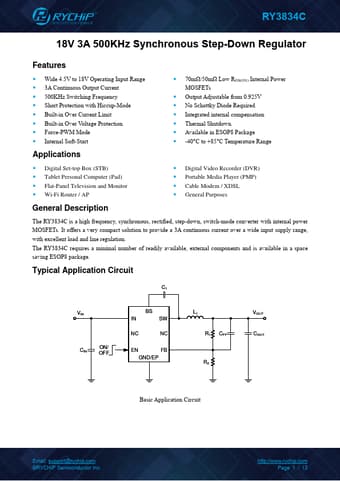

Preview of RY3834C PDF

Datasheet Details

Part number:

RY3834C

Manufacturer:

RYCHIP

File Size:

1.36 MB

Description:

18v 3a 500khz synchronous step-down regulator.
