RY3750

Step-Up Converter

RY3750 Features

* 2.5V to 5.5V Input Voltage

* 1.23V Feedback Voltage

* 1.2MHz Fixed Switching Frequency

* Internal 0.6A Switch Current Limit

* Internal Compensation

* Thermal Shutdown

* Available in a 5-pin SOT-23 package Applications

* Camera Fla

RY3750 General Description

The Y3750 is a step-up converter. Its 1.23V feedback voltage reduces power loss and improves efficiency. Optimized operation frequency can meet the requirement of small LC filters value and low operation current with high efficiency. Internal soft start function can reduce the inrush current. Tiny .

RY3750 Datasheet (729.87 KB)

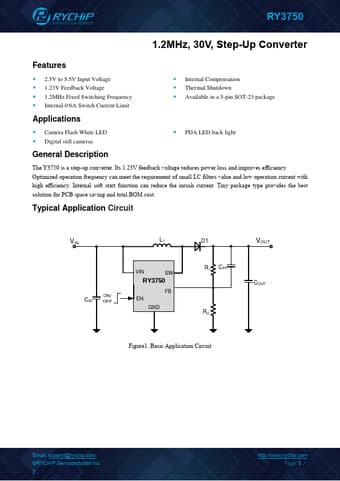

Preview of RY3750 PDF

Datasheet Details

Part number:

RY3750

Manufacturer:

RYCHIP

File Size:

729.87 KB

Description:

Step-up converter.
