DCR257 Datasheet - Compensated Deuices Incorporated

DCR257 CURRENT REGULATOR DIODES

CURRENT REGULATOR DIODES CONSTANT CURRENT OVER WIDE VOLTAGE RANGE HIGH SOURCE IMPEDANCE METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION DCR250 thru DCR257 MAXIMUM RATINGS Operating Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C DC Power Dissipation: 500 mW @ +50°C @ TL = 3/8” Power Derating: 4 mW / °C above +50°C ELECTRICAL CHARACTERISTICS @ 25°C, unless otherwise specified TYPE NUMBER REGULATOR CURRENT l p (mA) @ VS = 25V.

DCR257 Datasheet (15.74 KB)

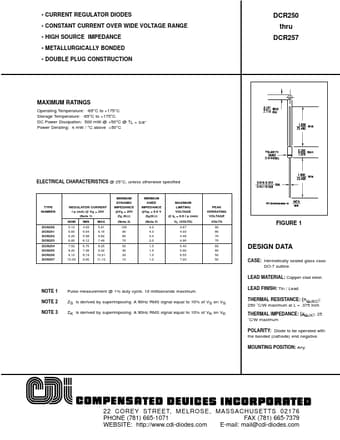

Preview of DCR257 PDF

Datasheet Details

Part number:

DCR257

Manufacturer:

Compensated Deuices Incorporated

File Size:

15.74 KB

Description:

Current regulator diodes.
