CY28359

273-MHz 6-Output Buffer

CY28359 Features

* Dual 1- to 3-output buffer/driver

* Supports up to 2 DDR DIMMs

* Outputs are individually enabled/disabled

* Low-skew outputs (< 100 ps)

* Supports 266-MHz, 333-MHz and 400-MHz DDR SDRAM

* SMBus Read and Write support

* Space-saving 28-pin SS

CY28359 General Description

The CY28359 is a 2.5V buffer designed to distribute high-speed clocks in PC applications. The part has 6 differential outputs. Designers can configure these outputs to support up to two DDR DIMMs. The CY28359 can be used in conjunction with the CY28326 or similar clock synthesizer for the VIA P4X600.

CY28359 Datasheet (180.53 KB)

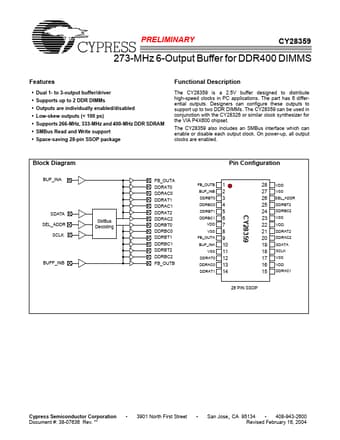

Preview of CY28359 PDF

Datasheet Details

Part number:

CY28359

Manufacturer:

Cypress Semiconductor

File Size:

180.53 KB

Description:

273-mhz 6-output buffer.
