CY62136EV30 - 2-Mbit (128K x 16) Static RAM

Cypress Semiconductor

📥 Download Datasheet

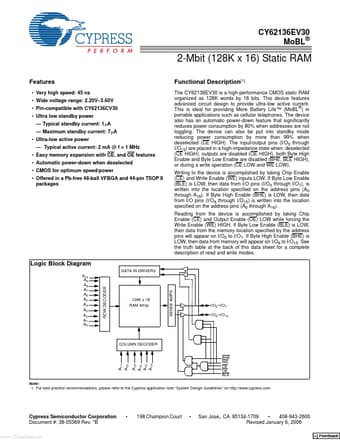

CY62136EV30 Datasheet Preview — Preview of CY62136EV30 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	CY62136EV30
Manufacturer	Cypress Semiconductor
File Size	594.83 KB
Description	2-Mbit (128K x 16) Static RAM
Datasheet	CY62136EV30_CypressSemiconductor.pdf

CY62136EV30 Product details

Description

1] The CY62136EV30 is a high-performance CMOS static RAM organized as 128K words by 16 bits.This device

Features

Very high speed: 45 ns.
Wide voltage range: 2.20V.
3.60V.
Pin-compatible with CY62136CV30.
Ultra low standby power.
Typical standby current: 1µA.
Maximum standby current: 7µA.
Ultra-low active power.
Typical active current: 2 mA @ f = 1 MHz.
Easy memory expansion with CE, and OE features.
Automatic power-down when deselected.
CMOS for optimum speed/power.
Offered in a Pb-free 48-ba.
