CY7C1380F, CY7C1380D - 18-Mbit Pipelined SRAM

CY7C1380F Description

Not Recommended for New Designs.CY7C1380D CY7C1380F CY7C1382D 18-Mbit (512K × 36/1M × 18) Pipelined SRAM 18-Mbit (512K × 36/1M × 18) Pipelined SRAM.
The CY7C1380D/.

CY7C1380F Features

* Supports bus operation up to 250 MHz
* Available speed grades are 250, 200, and 167 MHz
* Registered inputs and outputs for pipelined operation
* 3.3 V core power supply
* 2.5 V or 3.3 V I/O power supply
* Fast clock-to-output times
* 2.6 ns (for 250 MHz device)
* P

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: CY7C1380F, CY7C1380D. Please refer to the document for exact specifications by model.

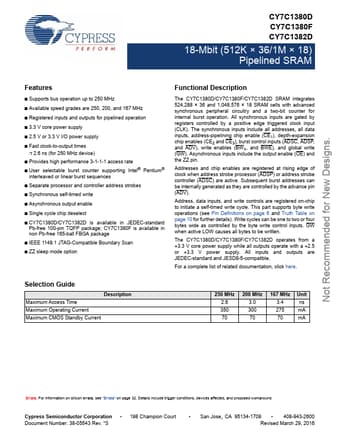

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
CY7C1380F, CY7C1380D
Manufacturer
Cypress Semiconductor
File Size
1.30 MB
Datasheet
CY7C1380D-CypressSemiconductor.pdf
Description
18-Mbit Pipelined SRAM
Note
This datasheet PDF includes multiple part numbers: CY7C1380F, CY7C1380D.
Please refer to the document for exact specifications by model.
