BTC3415A3 Datasheet - Cystech Electonics Corp

BTC3415A3 High Voltage NPN Epitaxial Planar Transistor

* High breakdown voltage. (BVCEO=300V) * Low collector output capacitance. (Typ. 2.1pF at VCB =30V) * Ideal for chroma circuit. * Pb-free lead plating and halogen-free package. Symbol BTC3415A3 Outline TO-92 B：Base C：Collector E：Emitter ECB Ordering Information .

BTC3415A3-CystechElectonicsCorp.pdf

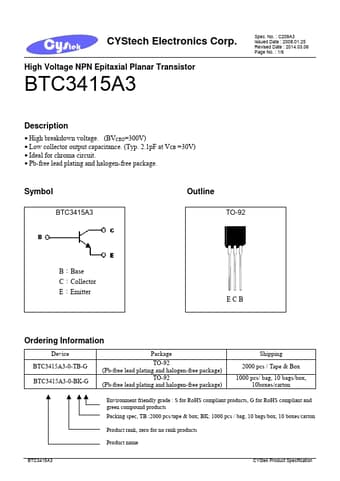

Preview of BTC3415A3 PDF
BTC3415A3 Datasheet Preview Page 2 BTC3415A3 Datasheet Preview Page 3

Datasheet Details

Part number:

BTC3415A3

Manufacturer:

Cystech Electonics Corp

File Size:

249.01 KB

Description:

High voltage npn epitaxial planar transistor.
