BTC3149E3 - High Voltage NPN Triple Diffused Planar Transistor

Product Overview

CYStech

Part number	BTC3149E3
Manufacturer	CYStech
File Size	194.68 KB
Description	High Voltage NPN Triple Diffused Planar Transistor
Datasheet	BTC3149E3 Datasheet
Additional preview pages of the BTC3149E3 datasheet.

High voltage, BVCBO=1600V min. , BVCEO=800V min.

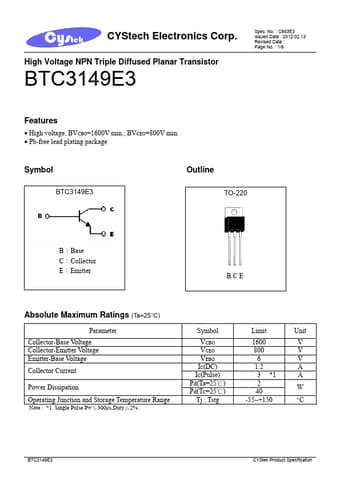

Pb-free lead plating package Symbol BTC3149E3 Outline TO-220 B：Base C：Collector E：Emitter BCE Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Power Dissipation Operating Junction and Storage Temperature Range Note :.
1. Single Pulse Pw≦300μs,Duty≦2%. Symbol VCBO VCEO VEBO IC(DC) IC(Pulse) Pd(Ta=25℃) Pd(Tc=25℃) Tj ; Tstg Limit 1600 800.
