BTC3097T3 - High Voltage NPN Triple Diffused Planar Transistor

BTC3097T3 Description

CYStech Electronics Corp.High Voltage NPN Triple Diffused Planar Transistor BTC3097T3 Spec.No.: C6633 Issued Date : 2012.01.19 Revised Date : Page.

BTC3097T3 Features

* High voltage, BVCBO=1600V min. , BVCEO=800V min.
* Pb-free lead plating package Symbol BTC3097T3 Outline TO-126 B：Base C：Collector E：Emitter BCE Absolute Maximum Ratings (Ta=25°C) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current

📥 Download Datasheet

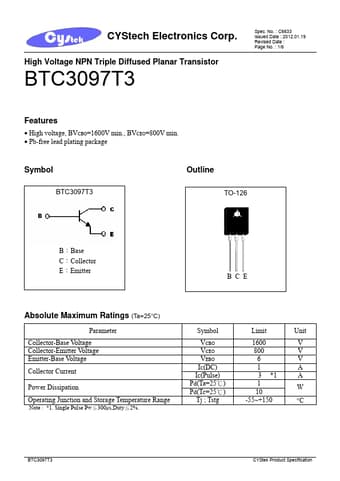

Preview of BTC3097T3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BTC3097T3
Manufacturer
CYStech
File Size
204.13 KB
Datasheet
BTC3097T3-CYStech.pdf
Description
High Voltage NPN Triple Diffused Planar Transistor
