BTC3097J3 - High Voltage NPN Triple Diffused Planar Transistor

BTC3097J3 Description

CYStech Electronics Corp.High Voltage NPN Triple Diffused Planar Transistor BTC3097J3 Spec.No.: C663J3 Issued Date : 2015.09.14 Revised Date : Pag.

BTC3097J3 Features

* High voltage, BVCBO=1600V min. , BVCEO=800V min.
* Pb-free lead plating package Symbol BTC3097J3 Outline TO-252(DPAK) B：Base C：Collector E：Emitter B CE Ordering Information Device BTC3097J3-0-T3-G Package TO-252 (Pb-free lead plating and halogen-free package) Shipping 2500

📥 Download Datasheet

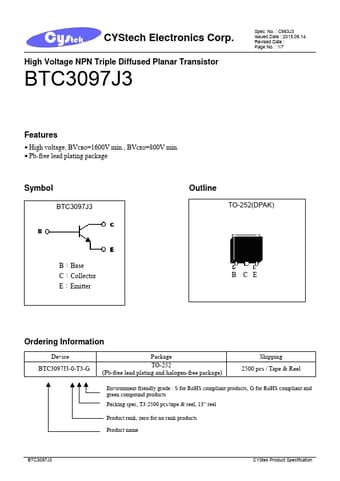

Preview of BTC3097J3 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BTC3097J3
Manufacturer
CYStech
File Size
279.45 KB
Datasheet
BTC3097J3-CYStech.pdf
Description
High Voltage NPN Triple Diffused Planar Transistor
