1N5399, 1N5391 SILICON RECTIFIER

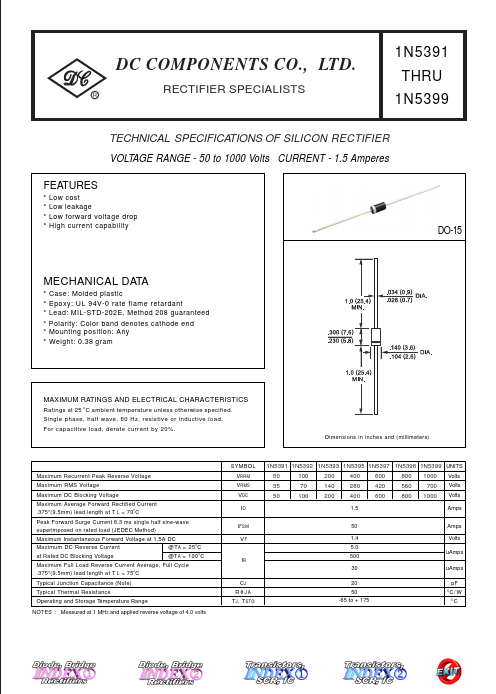

📥 Download Datasheet Datasheet Preview Page 1

Description

DC COMPONENTS CO., LTD.R RECTIFIER SPECIALISTS 1N5391 THRU 1N5399 TECHNICAL SPECIFICATIONS OF SILICON RECTIFIER VOLTAGE RANGE - 50 to 1000 Volts .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5399, 1N5391. Please refer to the document for exact specifications by model.

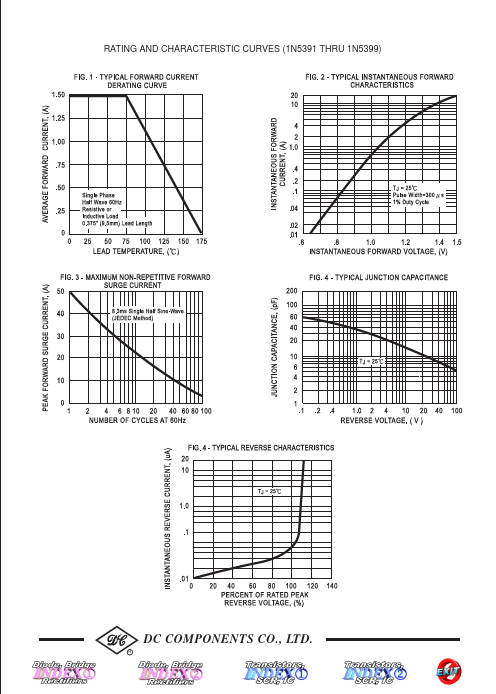

datasheet Preview Page 2

Datasheet Specifications

Part number
1N5399, 1N5391
Manufacturer
DC COMPONENTS
File Size
381.41 KB
Datasheet
1N5391-DCCOMPONENTS.pdf
Description
SILICON RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N5399, 1N5391.
Please refer to the document for exact specifications by model.

Features

* Low cost
* Low leakage
* Low forward voltage drop
* High current capability DO-15 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: UL 94V-0 rate flame retardant
* Lead: MIL-STD-202E, Method 208 guaranteed
* Polarity: Color band denotes cathode end
* Mounting po
