2SA812 PNP Transistor

DC COMPONENTS

2SA812 Description

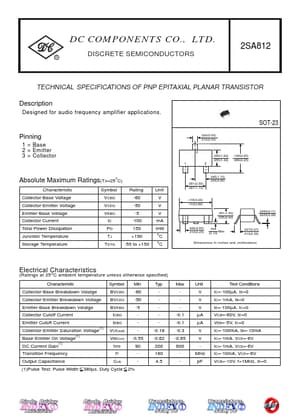

DC COMPONENTS CO., LTD.R DISCRETE SEMICONDUCTORS 2SA812 TECHNICAL SPECIFICATIONS OF PNP EPITAXIAL PLANAR TRANSISTOR .
Designed for audio frequency amplifier applications.

2SA812 Applications

* Pinning 1 = Base 2 = Emitter 3 = Collector .020(0.50) .012(0.30) SOT-23 3 .063(1.60) .108(0.65) .055(1.40) .089(0.25) 12 Absolute Maximum Ratings(TA=25oC) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Total Power Dissipation Junction Tem

📥 Download Datasheet

2SA812 Datasheet Preview — Preview of 2SA812 PDF

Datasheet Details

Part number: 2SA812
Manufacturer: DC COMPONENTS
File Size: 224.99 KB
Datasheet: 2SA812-DCCOMPONENTS.pdf
Description: PNP Transistor
