DMN3032L

N-CHANNEL MOSFET

DMN3032L Features

* Low On-Resistance

* Low Input Capacitance

* Fast Switching Speed

* Low Input/Output Leakage

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* For automotive applications requiring specific change control (i.e

DMN3032L General Description

This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications. Applications
* Battery charging
* Power-management functions
* DC-DC converters
* Portable power.

DMN3032L Datasheet (691.65 KB)

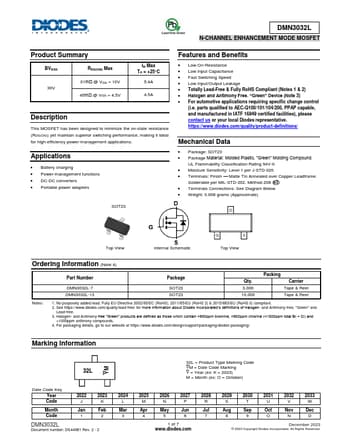

Preview of DMN3032L PDF

Datasheet Details

Part number:

DMN3032L

Manufacturer:

DIODES ↗

File Size:

691.65 KB

Description:

N-channel mosfet.
DMN3032L N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 30V RDS(ON) Max 31mΩ @ VGS = 10V 45mΩ @ VGS = 4.5V ID Max TA = +25°C 5.4A 4.5A D.
