DMN3300UQ

N-CHANNEL MOSFET

DMN3300UQ Features

* Low On-Resistance

* Low Gate Threshold Voltage

* Low Input Capacitance

* Fast Switching Speed

* Small Surface Mount Package

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen- and Antimony-Free. “Green” Device (Note 3)

DMN3300UQ General Description

This new generation MOSFET has been designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications. Applications

* DC-DC Converters

* Power Management Functions

* Battery O.

DMN3300UQ Datasheet (295.07 KB)

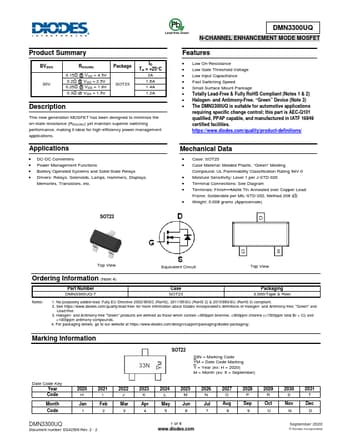

Preview of DMN3300UQ PDF

Datasheet Details

Part number:

DMN3300UQ

Manufacturer:

DIODES ↗

File Size:

295.07 KB

Description:

N-channel mosfet.
Product Summary BVDSS 30V RDS(ON) 0.15Ω @ VGS = 4.5V 0.2Ω @ VGS = 2.5V 0.25Ω @ VGS = 1.8V 0.3Ω @ VGS = 1.5V Package SOT23 ID TA = +25°C 2A 1.6A 1..
