DMN33D8L, N-CHANNEL MOSFET

NEW PNREOWDUPCRTODUCT Product Summary V(BR)DSS 30V RDS(ON) max 3.0Ω @ VGS = 10V 3.8Ω @ VGS = 5V ID max TA = +25°C 250mA 200mA .
and Applications This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making i.

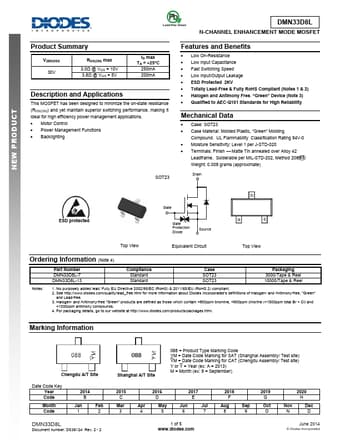

datasheet Preview Page 1 from Datasheet4u.com

DMN33D8L-Diodes.pdf

DMN33D8L Datasheet Preview — Preview of DMN33D8L PDF

Datasheet Details

Part number:

DMN33D8L

Manufacturer:

DIODES ↗

File Size:

259.89 KB

Description:

N-CHANNEL MOSFET

Features

* Low On-Resistance
* Low Input Capacitance
* Fast Switching Speed
* Low Input/Output Leakage
* ESD Protected 2KV
* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
* Halogen and Antimony Free. “Green” Device (Note 3)
* Qualified

Applications

* This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
* Motor Control
* Power Management Functions
* Backlighting SOT23 DMN33D8L N-CHANN
