DMN3300U

N-Channel MOSFET

DMN3300U Features

* Low On-Resistance

* Low Gate Threshold Voltage

* Low Input Capacitance

* Fast Switching Speed

* Small Surface Mount Package

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

DMN3300U General Description

This new generation MOSFET has been designed to minimize the on-state resistance (RDS(on)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications

* DC-DC Converters

* Power Management Functions

* Batte.

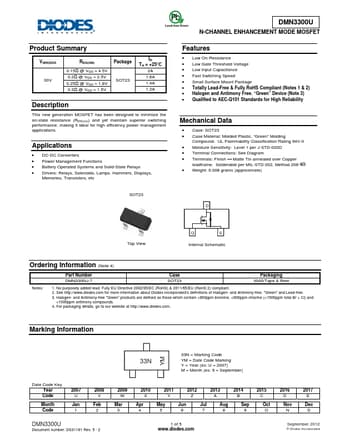

DMN3300U Datasheet (178.48 KB)

Preview of DMN3300U PDF

Datasheet Details

Part number:

DMN3300U

Manufacturer:

DIODES ↗

File Size:

178.48 KB

Description:

N-channel mosfet.
NEW PRODUCT Product Summary V(BR)DSS 30V RDS(ON) 0.15Ω @ VGS = 4.5V 0.2Ω @ VGS = 2.5V 0.25Ω @ VGS = 1.8V 0.3Ω @ VGS = 1.5V Package SOT23 ID TA = .
