DMN3350LDW

DUAL N-CHANNEL ENHANCEMENT MODE MOSFET

DMN3350LDW Features

* Dual N-Channel MOSFET

* Low On-Resistance

* Low Input Capacitance

* Fast Switching Speed

* ESD Protected Gate

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* For automotive applications requiring specif

DMN3350LDW General Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power-management applications.
* Motor controls
* Power-management functions
* DC-DC converters Mechanical Data
* P.

DMN3350LDW Datasheet (686.49 KB)

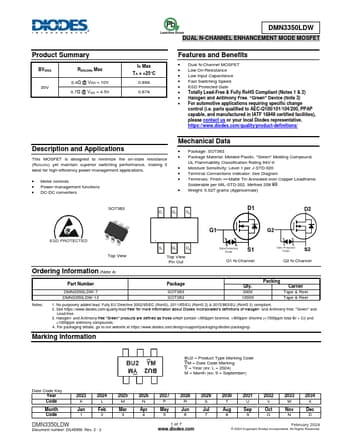

Preview of DMN3350LDW PDF

Datasheet Details

Part number:

DMN3350LDW

Manufacturer:

DIODES ↗

File Size:

686.49 KB

Description:

Dual n-channel enhancement mode mosfet.
DMN3350LDW DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 30V RDS(ON) Max 0.4Ω @ VGS = 10V 0.7Ω @ VGS = 4.5V ID Max TA = +25°C 0.89A.
