DMN33D8LDW

DUAL N-CHANNEL MOSFET

DMN33D8LDW Features

* Low On-Resistance

* Low Input Capacitance

* Fast Switching Speed

* ESD Protected Gate to 2kV

* Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)

* Halogen and Antimony Free. “Green” Device (Note 3)

* Qualified to AEC-Q101 standards for H

DMN33D8LDW General Description

This MOSFET has been designed to minimize the on-state resistance (RDS(ON)) and yet maintain superior switching performance, making it ideal for high efficiency power management applications. Applications

* Motor Control

* Power Management Functions

* DC-DC Converters

DMN33D8LDW Datasheet (272.34 KB)

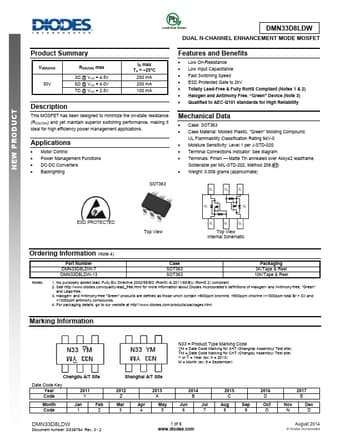

Preview of DMN33D8LDW PDF

Datasheet Details

Part number:

DMN33D8LDW

Manufacturer:

DIODES ↗

File Size:

272.34 KB

Description:

Dual n-channel mosfet.
ANDEV AWNPNCREEOWIDNPUFRCOOTRDMUACTTI O N DMN33D8LDW DUAL N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary V(BR)DSS 30V RDS(ON) max 3Ω @ VGS = 4..
