DMT12H007LPS

120V N-CHANNEL MOSFET

DMT12H007LPS Features

* BVDSS 120V RDS(ON) Max 7.8mΩ @ VGS = 10V 14.1mΩ @ VGS = 4.5V ID TC = +25°C 90A 70A Description and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.

DMT12H007LPS General Description

and Applications This MOSFET is designed to minimize the on-state resistance (RDS(ON)), yet maintain superior switching performance, making it ideal for high efficiency power management applications.
* Switching
* DC-DC Converters PowerDI5060-8
* 100% Unclamped Inductive Switching (UIS).

DMT12H007LPS Datasheet (510.42 KB)

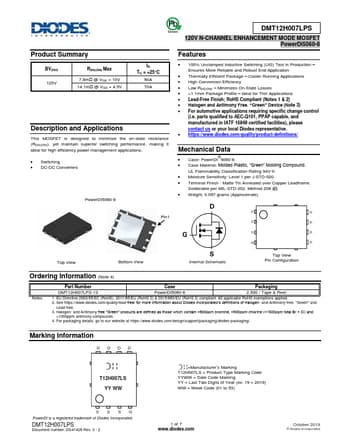

Preview of DMT12H007LPS PDF

Datasheet Details

Part number:

DMT12H007LPS

Manufacturer:

DIODES ↗

File Size:

510.42 KB

Description:

120v n-channel mosfet.
