* Rated to +175°C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching
* Ensures More Reliable and Robust End Application
* Small form factor thermally efficient package enables higher density end products
* Wettable Flank for Improve

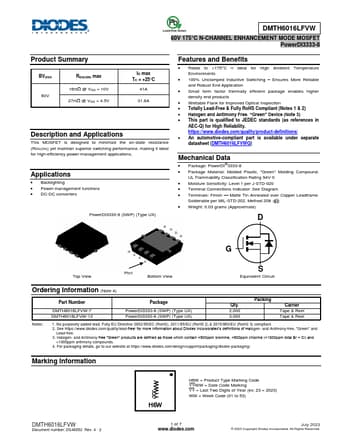

DMTH6016LFVW Datasheet (720.99 KB)
DMTH6016LFVW
720.99 KB
60v n-channel mosfet.
DMTH6016LFVW
60V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI3333-8
Product Summary
BVDSS 60V
RDS(ON) max 16m @ VGS = 10V 27m @ VGS = 4.5V
ID.
