* Rated to +175°C
* Ideal for High Ambient Temperature Environments
* 100% Unclamped Inductive Switching (UIS) Test in Production
* Ensures More Reliable and Robust End Application
* Small form factor thermally efficient package enables higher density end products
* W

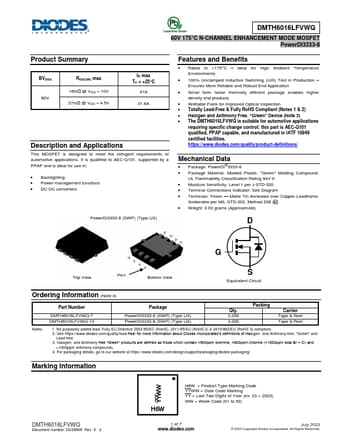

DMTH6016LFVWQ Datasheet (721.06 KB)
DMTH6016LFVWQ
721.06 KB
60v n-channel mosfet.
DMTH6016LFVWQ
60V 175°C N-CHANNEL ENHANCEMENT MODE MOSFET PowerDI3333-8
Product Summary
BVDSS 60V
RDS(ON) max 16mΩ @ VGS = 10V 27mΩ @ VGS = 4.5V
I.
