DRF4431F20

20dBm ISM RF Transceiver Module

DRF4431F20 Features

* Frequency Range: 433/868MHz

* Modulation: FSK/GFSK/OOK

* SPI Data Interface

* Sensitivity: -121dBm

* Output Power: +20dBm

* Data Rate: -0.123~256 kbps

* Digital RSSI

* Wake-up Timer

* 64 bytes TX/RX FIFOs

* Integrated Voltage Regulator

* Frequency Hoppi

DRF4431F20 General Description

DRF4432F20 is a type of low cost RF front-end transceiver module based on SI4432 from Silicon labs. It keeps all the advantages of RFIC SI4432 but simplifies the circuit design. The high sensitivity (-121dBm) and 20dBm high power output make the module suitable for most short range applications. DRF.

DRF4431F20 Datasheet (136.43 KB)

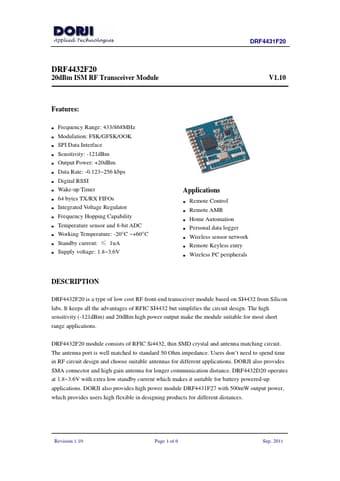

Preview of DRF4431F20 PDF

Datasheet Details

Part number:

DRF4431F20

Manufacturer:

DORJI

File Size:

136.43 KB

Description:

20dbm ism rf transceiver module.
